产品展示 > 移动电缆 > > Magnet Crane Cable

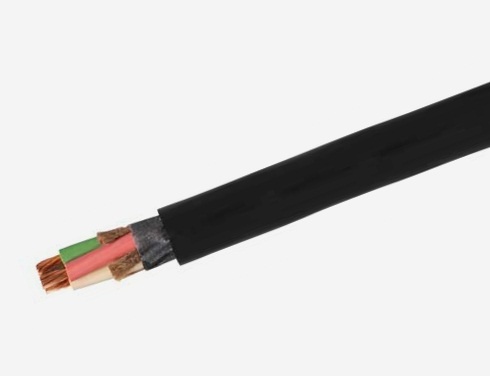

产品名称 : Magnet Crane Cable
 放大产品                返回上一页
←[上一个产品]              [下一个产品]→


详细说明:
Applications
For use in heavy duty services as power supply cable, AC systems (grounded and ungrounded), mobile and portable electrical equipment, motor and battery leads. For 2 conductor cables use on DC or AC single phase systems where no grounding is required, or on DC systems with one conductor for grounding. For 4 conductor cables, use on two or three phase AC systems with one conductor used for grounding. For 5 conductor cables, use in applications where separating the system neutral from the frame ground is required.

Construction
  • Conductor is 8 - 500 MCM fully annealed stranded bare copper.
  • Insulation is premium grade color coded 90oC EPDM.
  • Jacket is 90oC Black CPE+ with temperature range of -40oC to +90oC .
  • Jacket is Indent printed for easy identification (successive footage printing available).
  • Jacket marking is TYPE W PORTABLE POWER CABLE 2000V 90oC DRY 75oC WET SUN RES (UL) - PK(#) MSHA
  • Designed to withstand severe environmental conditions.
  • Withstands exposure to oil, acids, alkalies, heat, flame, moisture and chemicals.
  • Rope lay stranding for maximum flex life with excellent impact resistance and cable core bound for superior flexibillity and toughness.
  • Suitable for continuous submersion in water.
  • Lengths cut to order.

    Standards
    ICEA S-75-381 NEMA WC-58 UL TYPE W and MSHA approved.

    Notes
  • These ampacities are based on a conductor temperature of 90oC and an ambient air temperature of 40 oC per ICEA PUB-S-75-381 NEMA WC0-8. For ampacities per National Electrical Code requirements, refer to the latest NEC edition.
  • Shipping tolerance +/- 10%
  • Heavy duty neoprene jacket optional.
  • Succesive footage printing available.
