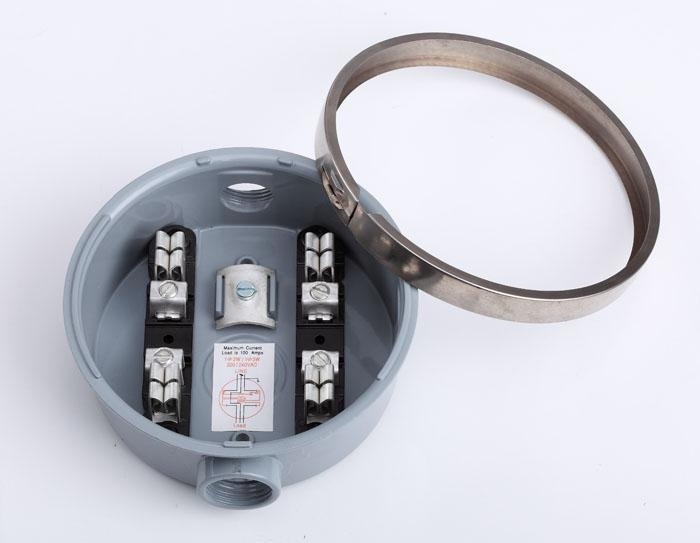

GY-100A Round Meter Sockets
100Amps,120/240V AC,Single phase,4 terminals,2 or 3 wire
Copper Jaw,Copper or aluminum connector
Application: Temporary Service
Outdoor Advertising
Small Customer Service
Other Low Amperage Requirements
Features: Our enclosure is made of die cast aluminum. The electrostatically applied epoxy and polyester resins, which are baked on, form a durable, light gray exterior. The current carring parts are of copper alloy. The ground connector is designed to insure a positive electrical connection by enseffectively clamping the conductor against a serrated surface.
Specification:
Fix hub size:1/2,3/4,1,1-1/4 for option.
