产品展示 > 架空绝缘电缆 > > 二芯ABC电缆

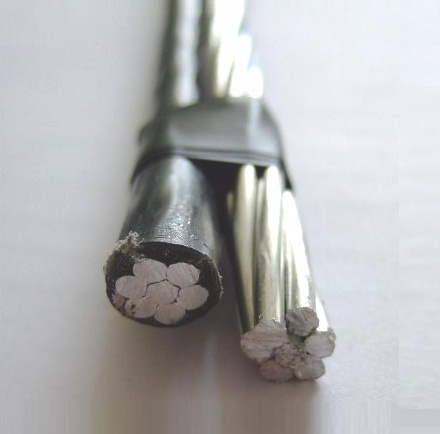

产品名称 : 二芯ABC电缆
 放大产品                返回上一页
←[上一个产品]


详细说明:
Applications
To supply 120 volt aerial service for temporary service at construction sites, outdoor or street lighting. For service at 600 volts or lower at a conductor temperature of 75°C maximum.

Construction
Concentric strand or compressed 1350-H19 conductor, polyethylene or crosslinked polyethylene insulation, concentric strand AAC neutral messenger.

Standards
  • B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
  • B-231 Aluminum Conductors, Concentric-Lay-Stranded.
  • B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
  • B-399 Concentric-Lay_Stranded 6201-T81 Aluminum Alloy Conductors.
  • B498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR).
  • Duplex Service Drop cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-474.

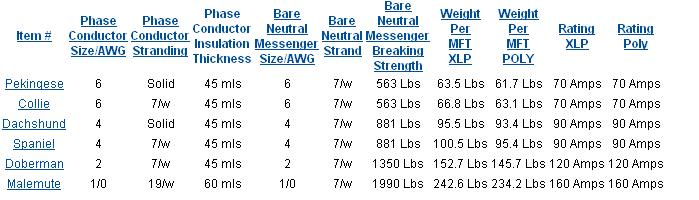

  • Code Word: Pekingese Collie Dachshund  Spaniel Doberman Malemute
