产品展示 > 架空绝缘电缆 > > 三芯ABC电缆

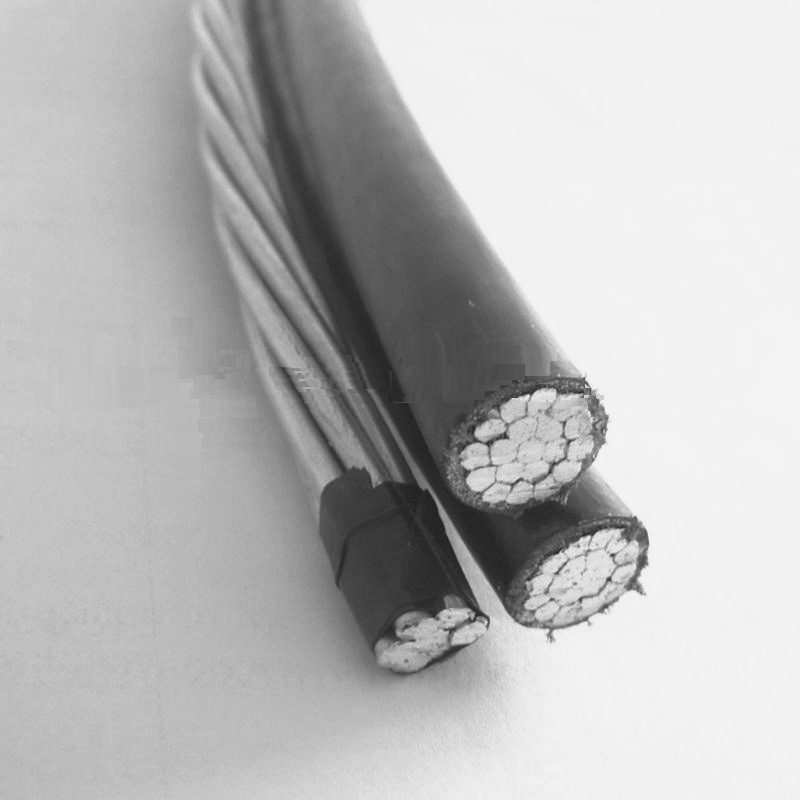

产品名称 : 三芯ABC电缆
 放大产品                返回上一页
←[上一个产品]              [下一个产品]→


详细说明:

Applications
To supply power from the utility's lines to the consumer's weatherhead. For service at 600 volts or less (phase to phase) at a conductor temperature of 75°C maximum for polyethylene Insulation or 90°C maximum for crosslinked insulation.

Construction
Concentric strand or compressed 1350-H19 conductor, polyethylene or crosslinked polyethylene insulation, concentric strand AAC  or ACSR or AAAC neutral messenger.

Standards


  • B-230 Aluminum Wire 1350-H19 for Electrical Purposes
  • B-231 Aluminum Conductors, Concentric-Lay-Stranded
  • B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR)
  • B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors
  • B-498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR).
  • Triplex Service Drop cable meets or exceeds all applicable requirements of ANSI/ICEA body S-76-474
  •
  • Code Word:
  • AAC Neutral-Messenger: Patella Oyster Clam Murex Purpura Nassa Melita Portunus Nannynose
  • ACSR NEUTRAL-MESSENGER: Paludina Voluta Whelk Periwinkle Conch Neritina Cenia Runcina Triton Mursia Zuzara Limpet
  • 6201 ALLOY NEUTRAL-MESSENGER: Minex Hippa Prawn Barnacle Shrimp Gammarus Leda Dungenese Cyclops Flustra Lepas
