产品展示 > 架空绝缘电缆 > > 四芯ABC电缆

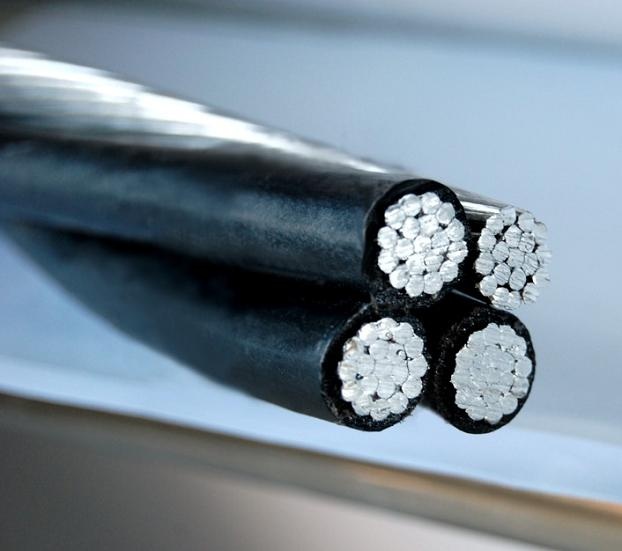

产品名称 : 四芯ABC电缆
 放大产品                返回上一页
←[上一个产品]              [下一个产品]→


详细说明:
Applications
Used to supply 3 phase power, usually from a pole- mounted transformer, to the user's service head where connection to the service entrance cable is made. To be used at voltages of 600 volts or less phase to phase and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for crosslinked polyethylene (XLP) insulated conductors.

Construction
Conductors are concentrically stranded, compressed 1350-H19 aluminum. Insulated with either polyethylene or XLP crosslinked polyethylene. Neutral messengers are concentrically stranded AAC or AAAC or ACSR. One conductor is manufactured with an extruded ridge for phase identification.

Standards
  • B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
  • B-231 Aluminum conductors, Concentric-Lay-Stranded.
  • B-232 Aluminum Conductors, Concentric- Lay-Stranded, Coated Steel Reinforced (ACSR).
  • B-399 Concentric-Lay-Stranded, 6201-T81 Aluminum Alloy Conductors.
  • B498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR).
  • Quadruplex Service Drop cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-474.

    Code Word:
  • AAC NEUTRAL-MESSENGER: Clydesdale Pinto  Mustang  Criollo Percheron Hanoverian  Oldenburg  Lippizaner
  • ACSR NEUTRAL-MESSENGER: Morochuca Chola  Morgan Hackney Palomino Costena Grullo  Suffolk Appaloosa Bronco Gelding
  • AAAC NEUTRAL-MESSENGER:Bay Solid French Coach  German Coach Arabian Belgian Shetland Thoroughbred  Trotter  Walking

    Note :

    Designated sizes are : ACSR 6/1 diameter equivalent and AAC with equivalent resistivity per ASTMB-399 for 6201.Conductor temperature of 90°C for XLR 75°C for Poly; ambient temperatures of 40°C; emissivity 0.9; 2ft./sec/wind in sun. To determine current ampacity by conductor size, please consult The National Electric Code, latest edition.
