产品展示 > 架空绝缘电缆 > > Single Conductor 600 V Secondary Type UD Cable Aluminum Conductor

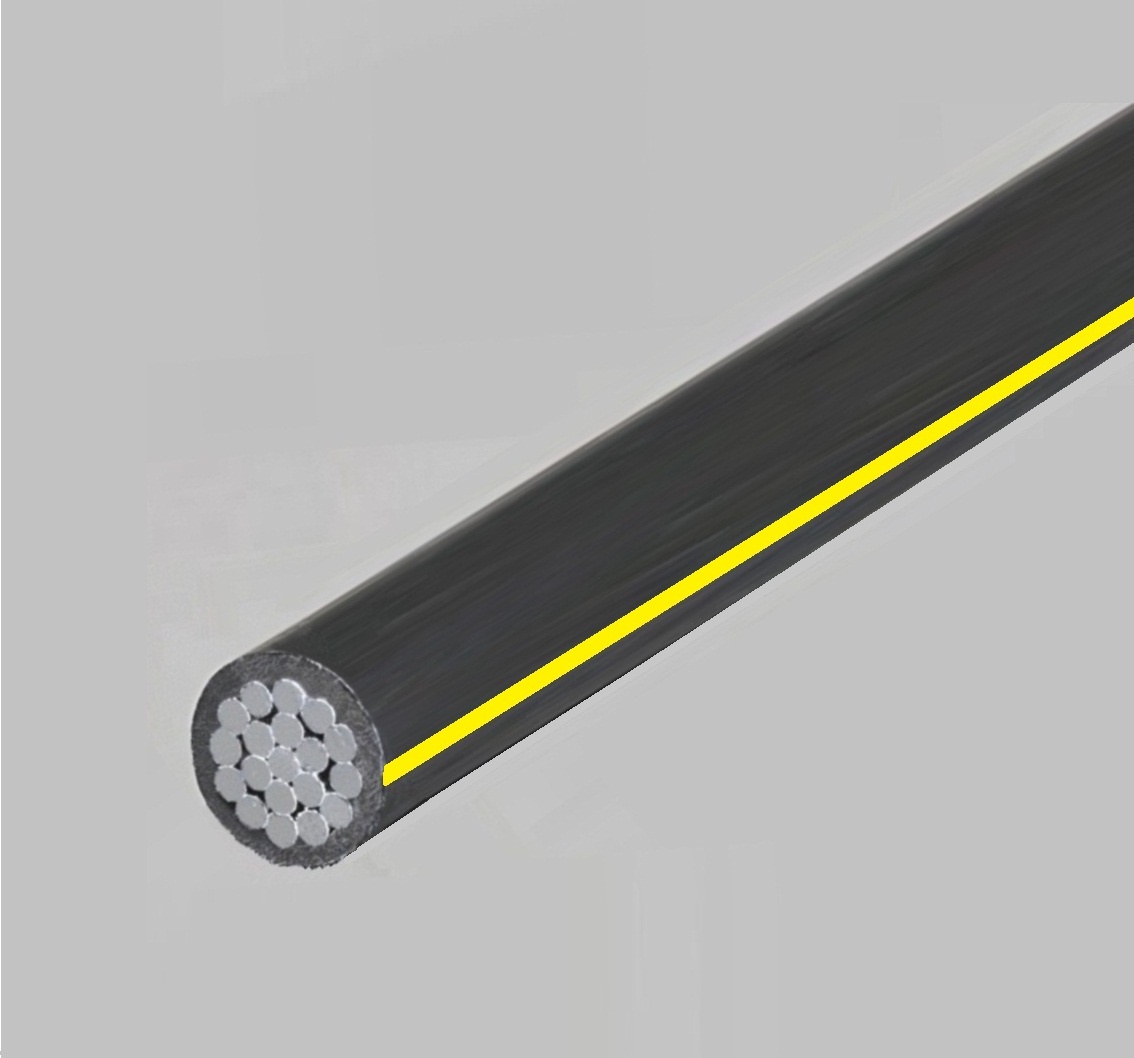

产品名称 : Single Conductor 600 V Secondary Type UD Cable Aluminum Conductor
 放大产品                返回上一页
←[上一个产品]              [下一个产品]→


详细说明:
Applications
Directly buried or installed in ducts for 600 volt secondary distribution.

Construction
Concentric stranded or compressed 1350-H19 aluminum conductor, crosslinked polyethylene insulation.

Standards
Secondary UD single conductor 600V cable meets or exceeds the following ASTM specifications.
B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
B-231 Aluminum 1350 conductors, Concentric-Lay-Stranded.
B-786 "19 Wire combination unilay-stranded Aluminum Conductors for subsequent insulation".
B-901 "Compressed round stranded Aluminum Conductors using single input wire construction".
Secondary UD single conductor 600V cable meets or exceeds all applicable requirements of ICEA S-105-692.
"USE-2" per UL 854 available upon request.

Options
Cable in Duct (CIC)
Abrasion Resistant

Ampacity
90oC conductor temperature, 20oC ambient, RHO factor 90, 100% load factor for three conductor triplexed, 3 phase operation. To determine correct ampacity by conductor size, please consult the National Electric Code, latest edition.

Item Code:
 Princeton
 Mercer
 Clemson
 Kenyon
 Harvard
 Yale
 Tufts
 Beloit
 Hofstra
 Gonzaga
 Rutgers
 Emory
 Duke
 Furman
 Sewanee
 Fordham
